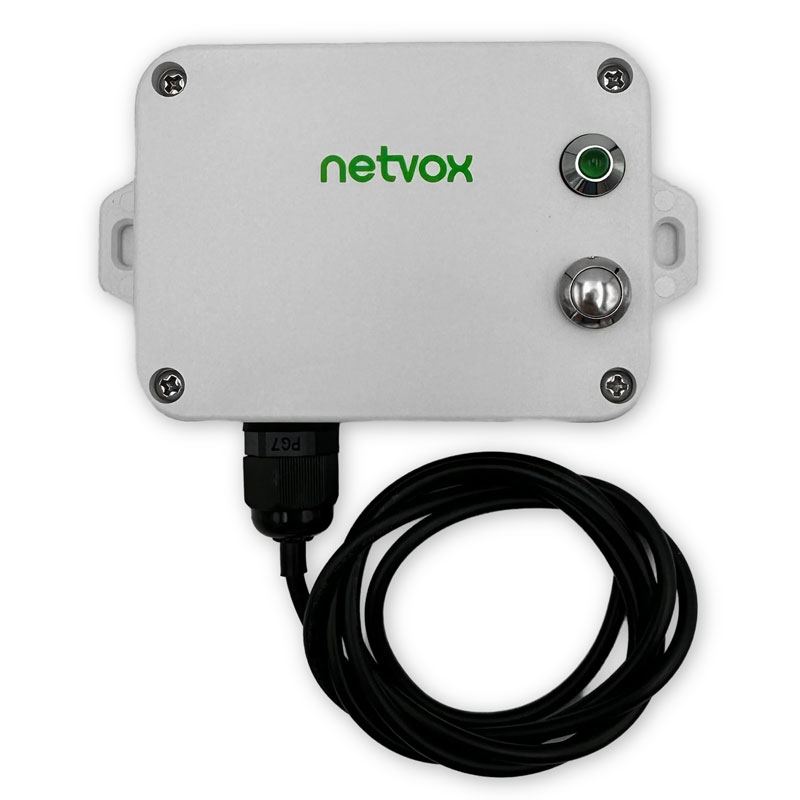

Netvox R718H Wireless Pulse Counter Interface (powered by 2 x ER14505 3.6V Lithium AA battery)

The Netvox R718H is equipped with a pulse detection interface that can count pulses and send the count to a gateway for display. It uses the SX1276 wireless communication module and is powered by two ER14505 batteries (AA size, 3.6V) connected in parallel. It has an IP65 rating and supports pulse-counting detection for external devices with a pulse voltage range of 2.4 V to 3.3 V. The base contains a magnet for attachment to ferromagnetic materials. The device is compatible with LoRaWAN Class A and uses frequency hopping spread spectrum (FHSS). The actual range varies depending on the environment, and battery life depends on the reporting frequency and other factors.
